How to Make Line Following Robot From Scratch

This is a line following robot with vaccum cleaning capabilities. This project explains how to build it using Arduino and also NodeMCU.

IntermediateFull instructions provided1 hour76
How to Make Line Following Robot From Scratch

Things used in this project

Hardware components

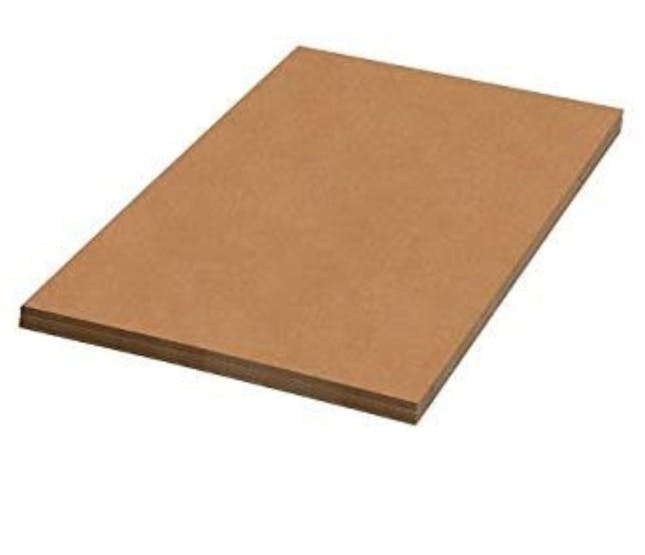

cardboard
×1
Glue bottle
×1

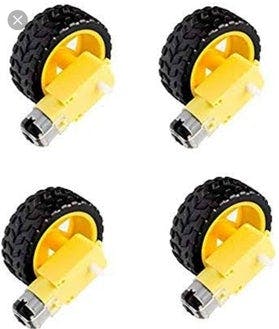

Bo motor
×1
Amazon Web Services wheels
×1

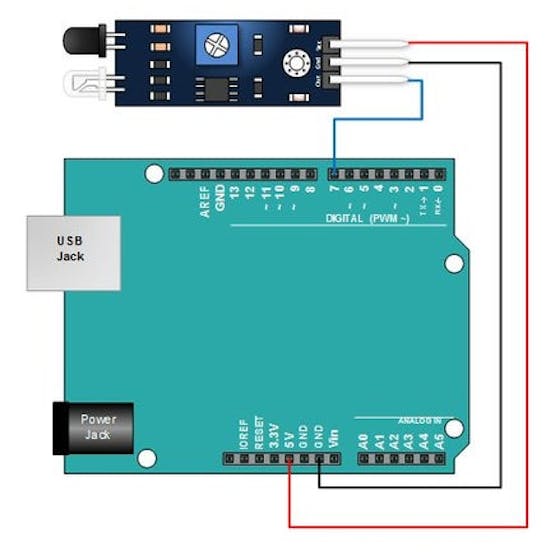

Ir sensor (built in last project)
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Dual H-Bridge motor drivers L298
SparkFun Dual H-Bridge motor drivers L298
×1
Jumper wires (generic)
Jumper wires (generic)
×1

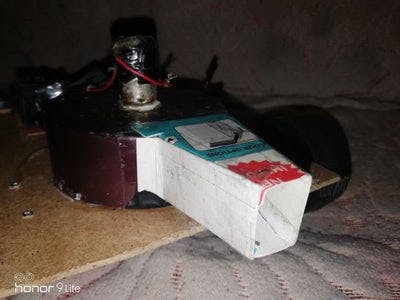

impellor / blower
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

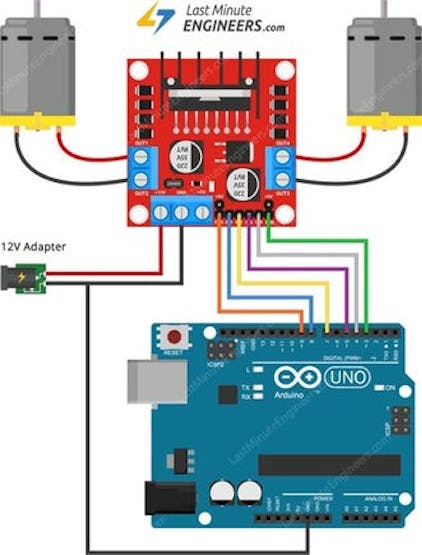

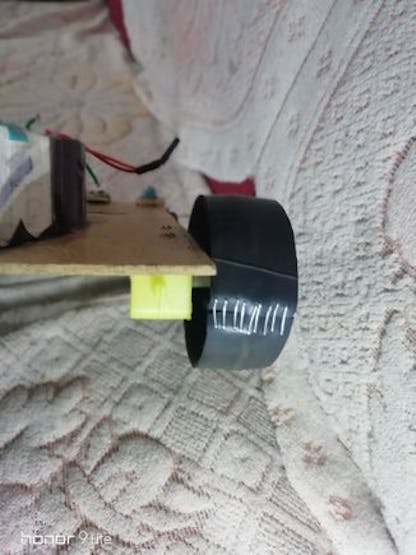

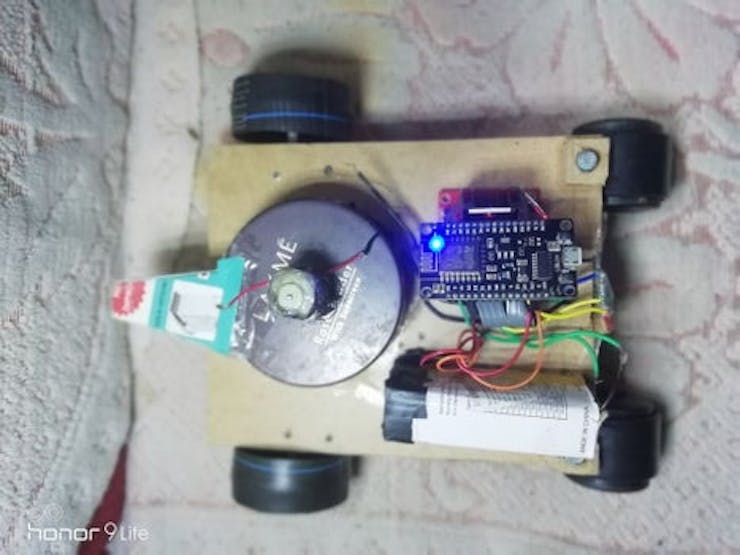

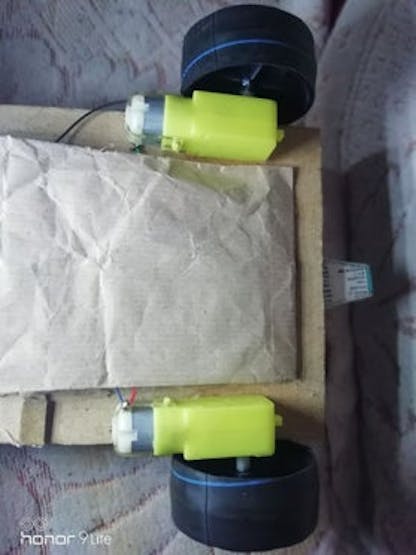

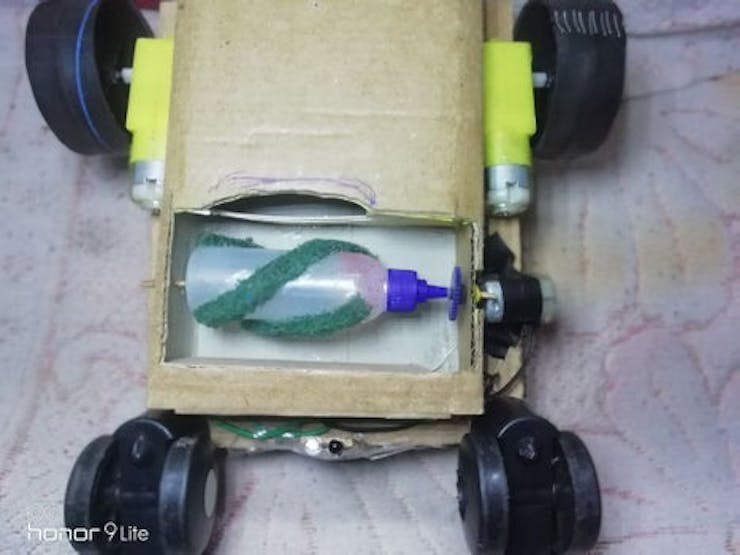

Robot Chasi and Connection

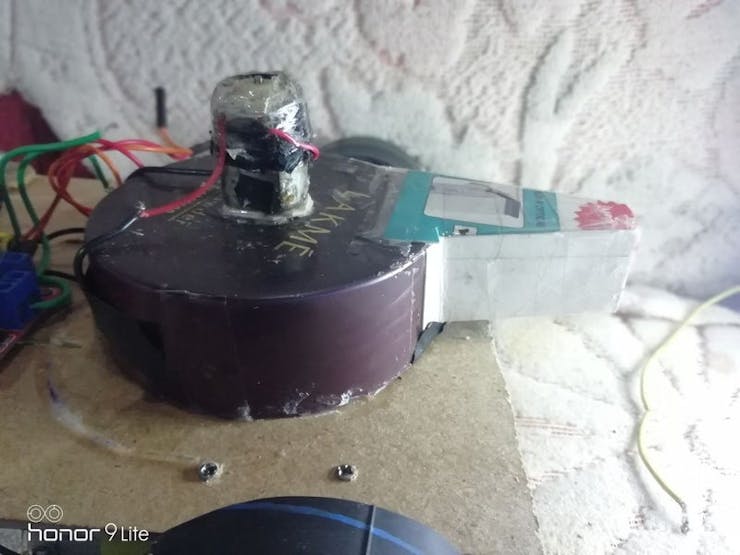

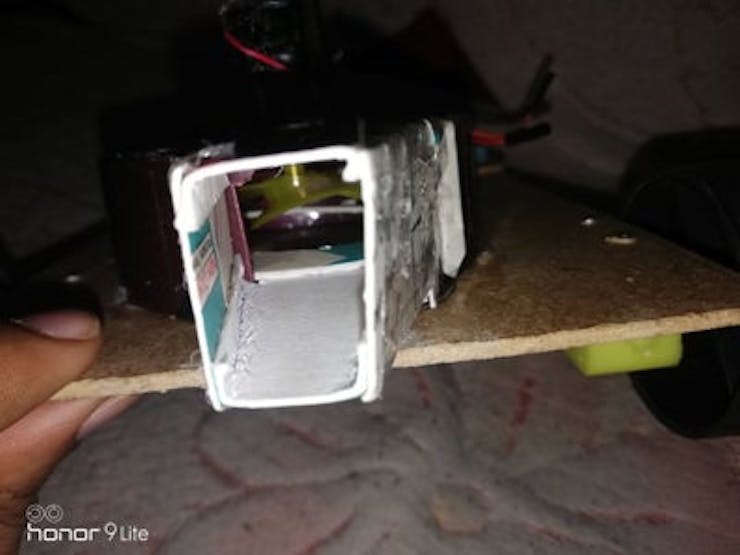

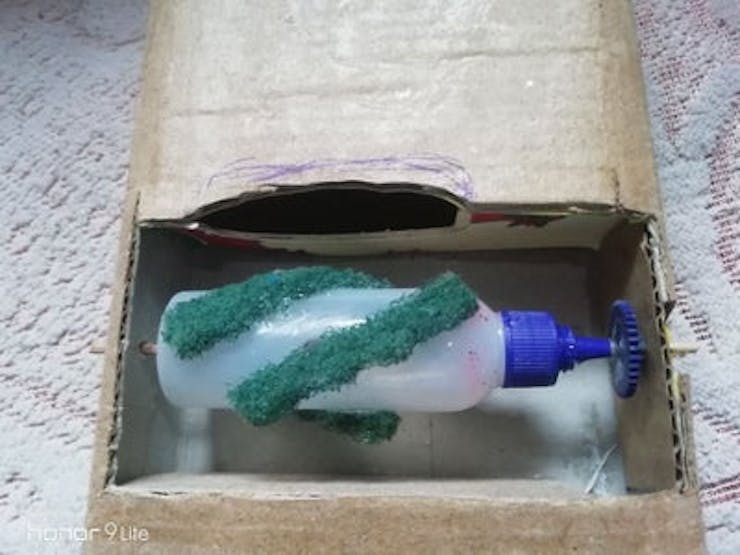

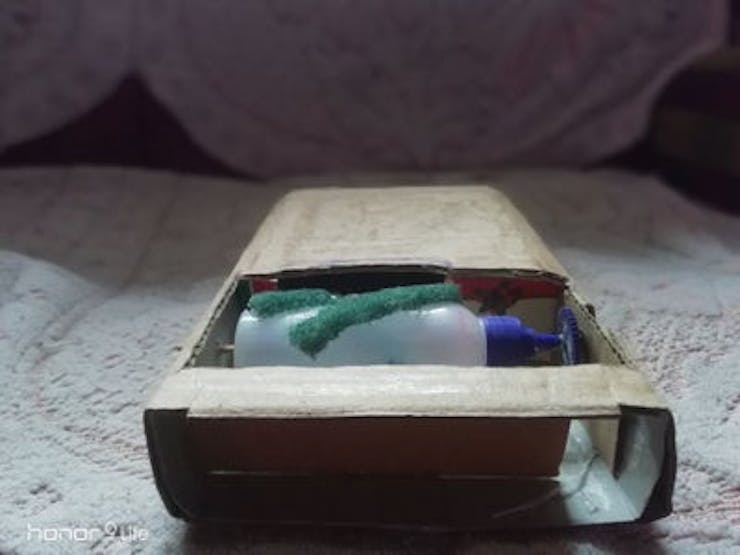

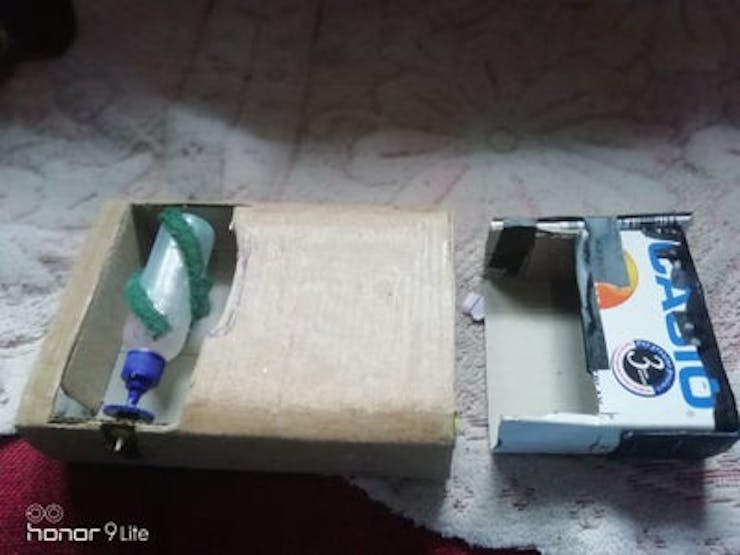

Dust collector making images

Code

code for vaccum cleaning robot using arduino

C/C++
int leftMotorForward = 3;
int  leftMotorBackward = 4;
int rightMotorForward  = 5;
int rightMotorBackward = 6;
int rightMotorENB = 8;
int leftMotorENB = 9;
#define LS 10    // left sensor

 #define RS 7      // right sensor */


void setup(){
  // put your setup code here, to run once:
 pinMode(leftMotorForward, OUTPUT);
  pinMode(rightMotorForward, OUTPUT);
  pinMode(leftMotorBackward, OUTPUT);
  pinMode(rightMotorBackward, OUTPUT);  /* initialize motor enable pins as output */
  pinMode(leftMotorENB, OUTPUT);
  pinMode(rightMotorENB, OUTPUT);

// initialize sensor pins as input
pinMode(LS, INPUT);
  pinMode(RS, INPUT);

}



void loop() {
if(digitalRead(LS) && digitalRead(RS))     // code to Move Forward
  { digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, HIGH);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, HIGH);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(!(digitalRead(LS)) && digitalRead(RS))     // code to  Turn right
  {digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, LOW);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, HIGH);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(digitalRead(LS) && !(digitalRead(RS)))     // turn left
  {digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, HIGH);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, LOW);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(!(digitalRead(LS)) && !(digitalRead(RS)))     // stop
  {digitalWrite(leftMotorENB, LOW);
   digitalWrite(rightMotorENB, LOW);
    digitalWrite(leftMotorForward, LOW);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, LOW);
    digitalWrite(rightMotorBackward, LOW);
  }   }


code for vaccum cleaning robot using Nodemcu

C/C++
If you are using Esp8266 Nodemcu use this code
// pin declaration if you are using Nodemcu
int leftMotorForward = 2;     /* GPIO2(D4) -> IN3   */
int  leftMotorBackward = 12;   /* GPIO12(D6 ) -> IN4  */
int rightMotorForward  = 4;    /* GPIO4(D2) -> IN1   */
int rightMotorBackward = 0;  /* GPIO0(D3) -> IN2  */
int rightMotorENB = 5; /* GPIO5(D1) -> Motor-A Enable */
int leftMotorENB = 14;  /* GPIO14(D5) -> Motor-B Enable */
#define LS 13     // D7  left sensor
 #define RS 15     // D8 right sensor


void setup(){
  // put your setup code here, to run once:
 pinMode(leftMotorForward, OUTPUT);
  pinMode(rightMotorForward, OUTPUT);
  pinMode(leftMotorBackward, OUTPUT);
  pinMode(rightMotorBackward, OUTPUT);  /* initialize motor enable pins as output */
  pinMode(leftMotorENB, OUTPUT);
  pinMode(rightMotorENB, OUTPUT);

// initialize sensor pins as input
pinMode(LS, INPUT);
  pinMode(RS, INPUT);

}



void loop() {
if(digitalRead(LS) && digitalRead(RS))     // code to Move Forward
  { digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, HIGH);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, HIGH);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(!(digitalRead(LS)) && digitalRead(RS))     // code to  Turn right
  {digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, LOW);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, HIGH);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(digitalRead(LS) && !(digitalRead(RS)))     // turn left
  {digitalWrite(leftMotorENB, HIGH);
   digitalWrite(rightMotorENB, HIGH);
    digitalWrite(leftMotorForward, HIGH);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, LOW);
    digitalWrite(rightMotorBackward, LOW);
  }

  if(!(digitalRead(LS)) && !(digitalRead(RS)))     // stop
  {digitalWrite(leftMotorENB, LOW);
   digitalWrite(rightMotorENB, LOW);
    digitalWrite(leftMotorForward, LOW);
    digitalWrite(leftMotorBackward, LOW);
    digitalWrite(rightMotorForward, LOW);
    digitalWrite(rightMotorBackward, LOW);
  }   }
