Smart Pool: Alexa Controlled Pool Manager

Build your own high-quality water sensor to monitor your pool or spa, using the Amazon Alexa to check on the status of your pool.

AdvancedFull instructions providedOver 1 day1,149
Smart Pool: Alexa Controlled Pool Manager

Things used in this project

Hardware components

Thinxtra xKit
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Arduino Compatible Sensor Expansion Shield
×1
9V Battery Clip
9V Battery Clip
×2
DFRobot Gravity: Analog ORP Sensor Meter For Arduino
×1
DFRobot Gravity: Analog Electrical Conductivity Sensor / Meter For Arduino
×1
pH Sensor Module + Electrode Probe for Arduino
×1
9V battery (generic)
9V battery (generic)
×2
Amazon Echo
Amazon Alexa Amazon Echo
×1
Diode Rectifier
×1
5V 1-Channel Relay Board Module
×1
ESP8266 ESP-01
Everything ESP ESP8266 ESP-01
×1
12V Solenoid Valve - 3/4"
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

AWS Lambda
Amazon Web Services AWS Lambda
Alexa Skills Kit
Amazon Alexa Alexa Skills Kit
AWS DynamoDB
Amazon Web Services AWS DynamoDB
Arduino IDE
Arduino IDE
Sigfox
Sigfox
AWS IoT
Amazon Web Services AWS IoT
AWS IAM
Amazon Web Services AWS IAM
Maker service
IFTTT Maker service
Amazon Alexa service
IFTTT Amazon Alexa service

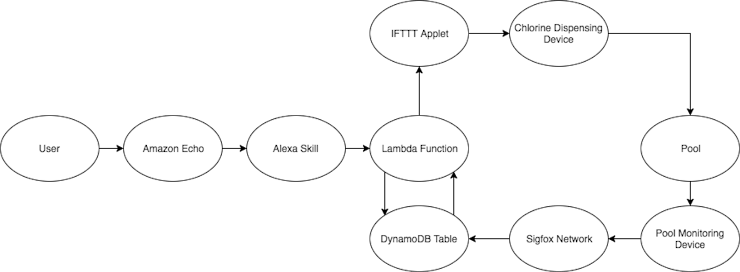

Story

Read more

Schematics

Xkit Development Guide For Arduino

Xkit Instructions Guide

Xkit AWS Guide

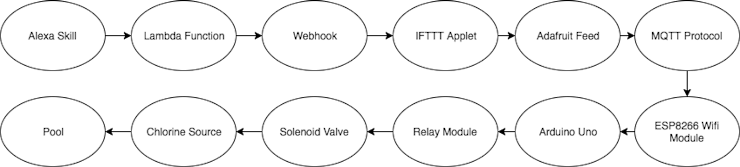

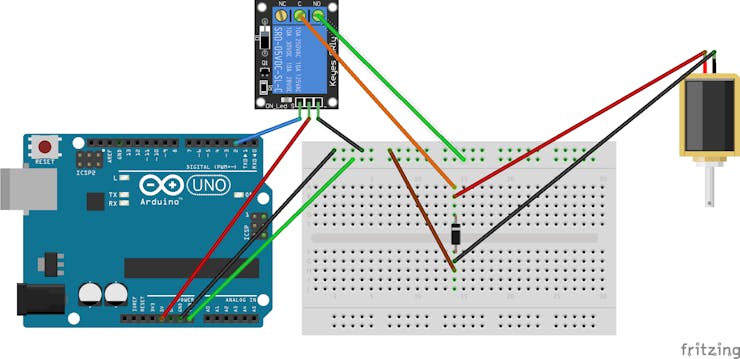

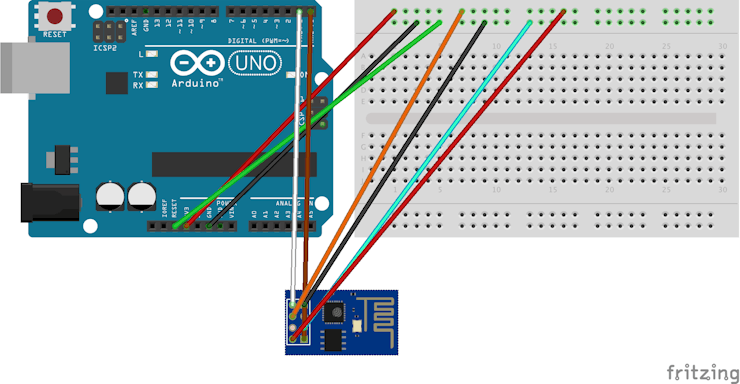

Chlorine Dispenser

Code

Combined_Sensors.ino

Arduino
//Initilallising the libraries needed
#include <OneWire.h>
#include <Tsensors.h>
#include <Wire.h>
#include <Isigfox.h>
#include <WISOL.h>
#include <math.h>
#include <avr/wdt.h>

// Set up the protocol for Sigfox and the Sensors on board the xKit
Isigfox *Isigfox = new WISOL();
Tsensors *tSensors = new Tsensors();

// Defining the unions for the payload package
typedef union{
    float number;
    uint8_t bytes[4];
} FLOATUNION_t;

typedef union{
    uint16_t number;
    uint8_t bytes[2];
} UINT16_t;

typedef union{
    int16_t number;
    uint8_t bytes[2];
} INT16_t;



//pH Probe Setup
float calibration = 20.86; //change this value to calibrate
const int analogInPin = A2;
int sensorValue = 0;
unsigned long int avgValue;
float b;
int buf[10],temp;
int ph;
int ecValue;
int orp;


//EC Probe Setup
#define StartConvert 0
#define ReadTemperature 1

const byte numReadings = 20;     //the number of sample times
byte ECsensorPin = A3;  //EC Meter analog output,pin on analog 1
byte DS18B20_Pin = 5; //DS18B20 signal, pin on digital 2
unsigned int AnalogSampleInterval=25,printInterval=700,tempSampleInterval=850;  //analog sample interval;serial print interval;temperature sample interval
unsigned int readings[numReadings];      // the readings from the analog input
byte index = 0;                  // the index of the current reading
unsigned long AnalogValueTotal = 0;                  // the running total
unsigned int AnalogAverage = 0,averageVoltage=0;                // the average
unsigned long AnalogSampleTime,printTime,tempSampleTime;
float temperature,ECcurrent;

//Temperature chip i/o
OneWire ds(DS18B20_Pin);


//ORP Probe Setup
#define VOLTAGE 5.00    //system voltage
#define OFFSET 22        //OFFSET from calibration
#define LED 13

double orpValue;

#define ArrayLenth  40    //times of collection
#define orpPin 0          //Analog Pin ORP Module is connected
int orpArray[ArrayLenth];
int orpArrayIndex=0;

double avergearray(int* arr, int number){
  int i;
  int max,min;
  double avg;
  long amount=0;
  if(number<=0){
    printf("Error number for the array to avraging!/n");
    return 0;
  }
  if(number<5){   //less than 5, calculated directly statistics
    for(i=0;i<number;i++){
      amount+=arr[i];
    }
    avg = amount/number;
    return avg;
  }else{
    if(arr[0]<arr[1]){
      min = arr[0];max=arr[1];
    }
    else{
      min=arr[1];max=arr[0];
    }
    for(i=2;i<number;i++){
      if(arr[i]<min){

  amount+=min;        //arr<min
        min=arr[i];
      }else {
        if(arr[i]>max){
          amount+=max;    //arr>max
          max=arr[i];
        }else{
          amount+=arr[i]; //min<=arr<=max
        }
      }//if
    }//for
    avg = (double)amount/(number-2);
  }//if
  return avg;
}



void setup() {
  Serial.begin(9600);

// Initialising and testing the Sigfox protcall
  Isigfox->initSigfox();
  Isigfox->testComms();

// Init sensors on Thinxtra Module
  tSensors->initSensors();

  // Init an interruption on the button of the Xkit
  tSensors->setButton(buttonIR);

// Setting up EC Sensor
 for (byte thisReading = 0; thisReading < numReadings; thisReading++)
    readings[thisReading] = 0;
  TempProcess(StartConvert);   //let the DS18B20 start the convert
  AnalogSampleTime=millis();
  printTime=millis();
  tempSampleTime=millis();
}



void loop() {
  // The data from ORP and EC probes are constanlty monitored
  static unsigned long orpTime=millis();
  int orpValue = update(); // Gather the ORP value
  int ecValue = getEC(); // Gather the Conductivity and the Temperature
  if(millis() >= orpTime)  // Every 10 minutes, all the data is sent to Sigfox through the Send_Data function
  {
  orpTime=millis()+600000;
  Serial.print("ORP: ");
  Serial.print((int)orpValue);
  Serial.println("mV");
  int ph = getPh();
  Serial.print("Sending pH: "); Serial.println(ph);
   Serial.print("EC Value: "); Serial.println(ecValue);
   Serial.print("Temperature: "); Serial.println(temperature);
   Send_Data(); // Prepare the payload to send to Sigfox
  }
}

// Function to collect ORP Value
int update() {
static unsigned long orpTimer=millis();

  if(millis() >= orpTimer)
  {
    orpTimer=millis()+20;
    orpArray[orpArrayIndex++]=analogRead(orpPin);    //read an analog value every 20ms
    if (orpArrayIndex==ArrayLenth) {
      orpArrayIndex=0;
    }
    orpValue=((30*(double)VOLTAGE*1000)-(75*avergearray(orpArray, ArrayLenth)*VOLTAGE*1000/1024))/75-OFFSET;   //convert the analog value to orp according the circuit
  }
 return orpValue;
}

// Function to collect pH Value
int getPh() {
  for(int i=0;i<10;i++)
 {
 buf[i]=analogRead(analogInPin);
 delay(30);
 }
 for(int i=0;i<9;i++)
 {
 for(int j=i+1;j<10;j++)
 {
 if(buf[i]>buf[j])
 {
 temp=buf[i];
 buf[i]=buf[j];
 buf[j]=temp;
 }
 }
 }
 avgValue=0;
 for(int i=2;i<8;i++)
 avgValue+=buf[i];
 float pHVol=(float)avgValue*5.0/1024/6;
 float phValue = -5.70 * pHVol + calibration;
 int ph = phValue*100; // pH value has to be sent as an integer so we muliply by 100, then divide by 100 on the Sigfox Console

return ph;
  }


// Function to collect EC value
int getEC(){

if(millis()-AnalogSampleTime>=AnalogSampleInterval)
  {
    AnalogSampleTime=millis();
     // subtract the last reading:
    AnalogValueTotal = AnalogValueTotal - readings[index];
    // read from the sensor:
    readings[index] = analogRead(ECsensorPin);
    // add the reading to the total:
    AnalogValueTotal = AnalogValueTotal + readings[index];
    // advance to the next position in the array:
    index = index + 1;
    // if we're at the end of the array...
    if (index >= numReadings)
    // ...wrap around to the beginning:
    index = 0;
    // calculate the average:
    AnalogAverage = AnalogValueTotal / numReadings;
  }

   if(millis()-tempSampleTime>=tempSampleInterval)
  {
    tempSampleTime=millis();
    temperature = TempProcess(ReadTemperature);  // read the current temperature from the  DS18B20
    TempProcess(StartConvert);                   //after the reading,start the convert for next reading
  }

  if(millis()-printTime>=printInterval)
  {
    printTime=millis();
    averageVoltage=AnalogAverage*(float)5000/1024;

    float TempCoefficient=1.0+0.0185*(temperature-25.0);    //temperature compensation formula: fFinalResult(25^C) = fFinalResult(current)/(1.0+0.0185*(fTP-25.0));
    float CoefficientVolatge=(float)averageVoltage/TempCoefficient;

    if(CoefficientVolatge>3300)Serial.println("Out of the range!");  //>20ms/cm,out of the range
    else
    {
      if(CoefficientVolatge<=448)ECcurrent=6.84*CoefficientVolatge-64.32;   //1ms/cm<EC<=3ms/cm
      else if(CoefficientVolatge<=1457)ECcurrent=6.98*CoefficientVolatge-127;  //3ms/cm<EC<=10ms/cm
      else ECcurrent=5.3*CoefficientVolatge+2278;                           //10ms/cm<EC<20ms/cm
      ECcurrent/=10;    //convert us/cm to ms/cm
   ecValue = ECcurrent;
    }
  }
return ecValue;
return temperature;
}


// Proccesses the Temperature Value
float TempProcess(bool ch)
{
  //returns the temperature from one DS18B20 in DEG Celsius
  static byte data[12];
  static byte addr[8];
  static float TemperatureSum;
  if(!ch){
          if ( !ds.search(addr)) {
              Serial.println("no more sensors on chain, reset search!");
              ds.reset_search();
              return 0;
          }
          if ( OneWire::crc8( addr, 7) != addr[7]) {
              Serial.println("CRC is not valid!");
              return 0;
          }
          if ( addr[0] != 0x10 && addr[0] != 0x28) {
              Serial.print("Device is not recognized!");
              return 0;
          }
          ds.reset();
          ds.select(addr);
          ds.write(0x44,1); // start conversion, with parasite power on at the end
  }
  else{
          byte present = ds.reset();
          ds.select(addr);
          ds.write(0xBE); // Read Scratchpad
          for (int i = 0; i < 9; i++) { // we need 9 bytes
            data[i] = ds.read();
          }
          ds.reset_search();
          byte MSB = data[1];
          byte LSB = data[0];
          float tempRead = ((MSB << 8) | LSB); //using two's compliment
          TemperatureSum = tempRead / 16;
    }
          return TemperatureSum;
}



// Function that sends payload to Sigfox
void Send_Pload(uint8_t *sendData, const uint8_t len) {
  recvMsg *RecvMsg;

  RecvMsg = (recvMsg *)malloc(sizeof(recvMsg));
  Isigfox->sendPayload(sendData, len, 0, RecvMsg);
  for (int i = 0; i < RecvMsg->len; i++) {
    Serial.print(RecvMsg->inData[i]);
  }
  Serial.println("");
  free(RecvMsg);
}

//Function that packs the raw data into a payload
void Send_Data(){
  UINT16_t ph, orpValue, ecValue, temperature;

  ph.number = (uint16_t)getPh();
  Serial.println(ph.number);
  orpValue.number = (uint16_t)update();
  Serial.println(orpValue.number);
  ecValue.number = (uint16_t)getEC();
  Serial.println(ecValue.number);
  temperature.number = (uint16_t)getTemperature();
  Serial.println(temperature.number);

const uint8_t payloadSize = 8; //Number of bytes of the payload, every value takes 2 bytes
//  byte* buf_str = (byte*) malloc (payloadSize);
  uint8_t buf_str[payloadSize];

// Packs the data into the payload
  buf_str[0] = ph.bytes[0];
  buf_str[1] = ph.bytes[1];
  buf_str[2] = orpValue.bytes[0];
  buf_str[3] = orpValue.bytes[1];
  buf_str[4] = ecValue.bytes[0];
  buf_str[5] = ecValue.bytes[1];
  buf_str[6] = temperature.bytes[0];
  buf_str[7] = temperature.bytes[1];

//Initilises the payload of data to be sent to Sigfox
Send_Pload(buf_str, payloadSize);

  }

// Function to get the Temperature for the payload
int getTemperature(){
 temperature = temperature * 10;
  return temperature;
  }

// Button on Thinxtra board that will initilise the sending of data
void buttonIR(){

   Send_Data();


}
