Things used in this project

Hardware components:
11546 04
Raspberry Pi 1 Model B
×1
A000066 iso both
Arduino UNO & Genuino UNO
×1
386 00
DHT11 Temperature & Humidity Sensor
×1
YL-69 Soil Moisture Sensor
×1
Water Level Sensor
×1
Standard LCD 16x2
×1
Water Pump Motor
×1
5V Relay
×1
Adafruit industries ada830 image 75px
4xAA battery holder
×1
Software apps and online services:
Ha 2up iot
Amazon Web Services AWS IoT
Screen%20shot%202015 07 20%20at%206.11.48%20pm
Amazon Web Services AWS DynamoDB
Screen%20shot%202016 06 16%20at%2011.43.43%20am
Johnny-Five

Schematics

Raspberry Pi Circuit
Pi wout camera bb
Raspberry Pi Circuit
pi-wout-camera.fzz
Arduino circuit
Arduino bb
Arduino Circuit
arduino.fzz

Code

Raspberry Pi Nodejs Source Code

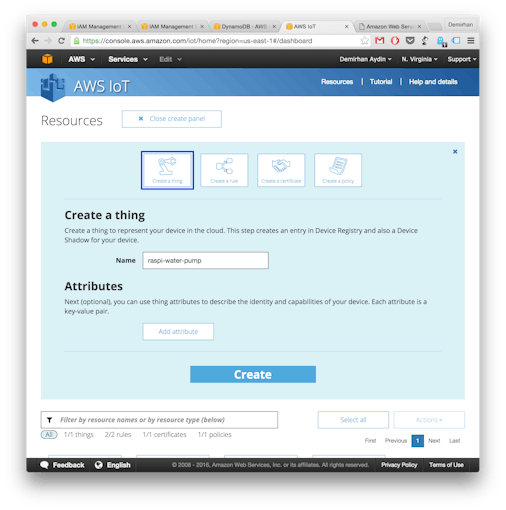

clone the source code to raspberry pi and add your aws iot certificate files under certs folder. you should also update device.js with your aws iot thing url
WaterPi Web Client
dont forget to update boot.rb with your credentials
