Integrate RAK473 with AWS IoT Shadow Services

This tutorial takes you through the intricacies of integrating the RAK473 based board with AWS IoT Shadow services and to react to updates.

AdvancedProtip4 hours410
Integrate RAK473 with AWS IoT Shadow Services

Things used in this project

Hardware components

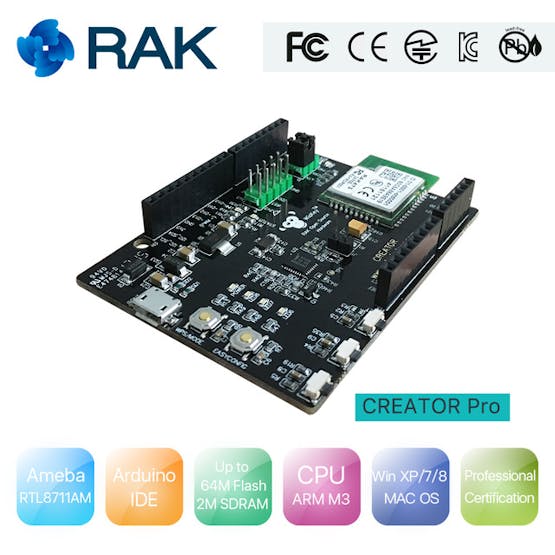

RakWireless RAK473
×1

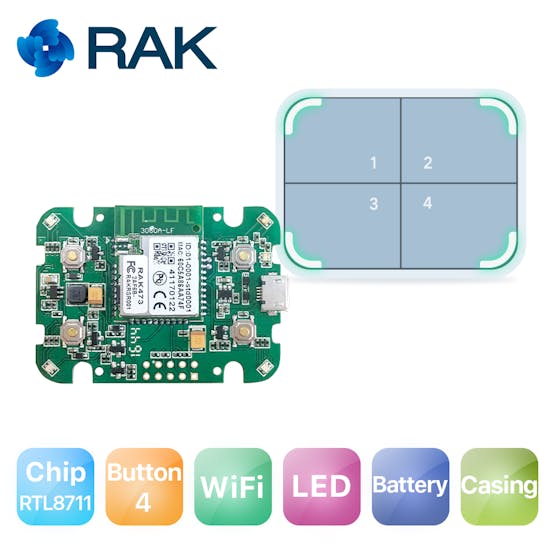

RakWireless Rak Dash button
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Raspberry Pi 3 Model B
Raspberry Pi 3 Model B
×1
SparkFun FTDI Basic Breakout - 3.3V
SparkFun FTDI Basic Breakout - 3.3V
×1

Software apps and online services

Arduino IDE
Arduino IDE

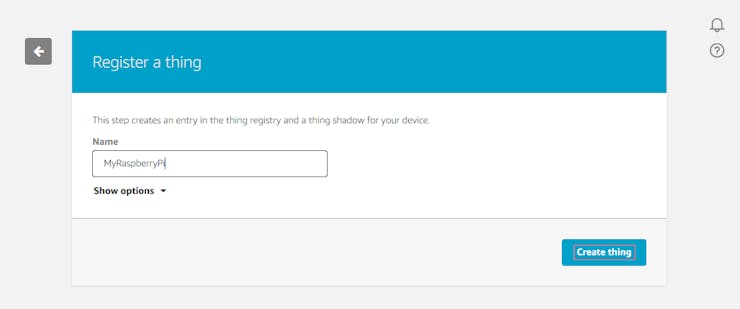

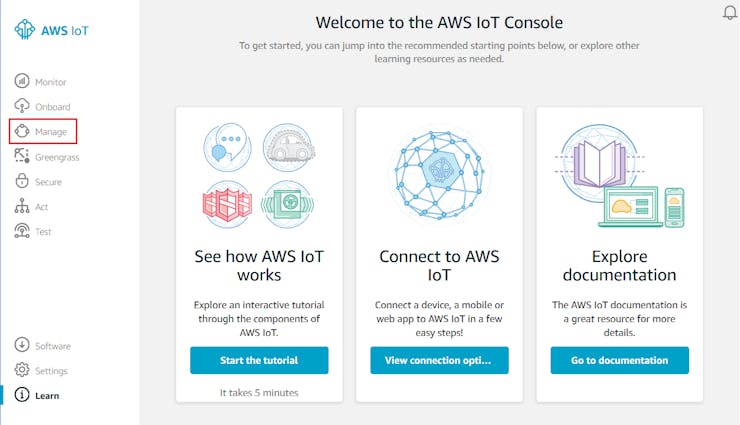

AWS IoT
Amazon Web Services AWS IoT

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

rak 473 repo

Code

Arduino code

Arduino
/*
 Basic Amazon AWS IoT example

*/

#include <WiFi.h>
#include <PubSubClient.h>

// Update these with values suitable for your network.
char ssid[] = "yourNetwork";     // your network SSID (name)
char pass[] = "secretPassword";  // your network password
int status  = WL_IDLE_STATUS;    // the Wifi radio's status

WiFiSSLClient wifiClient;
PubSubClient client(wifiClient);

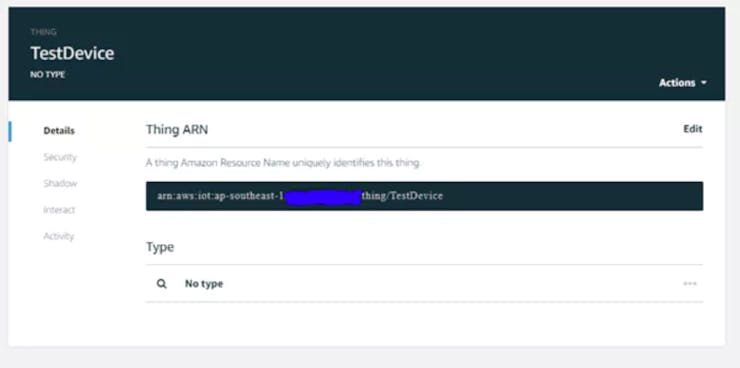

#define THING_NAME "ameba"

char mqttServer[]           = "a2zweh2b7yb784.iot.ap-southeast-1.amazonaws.com";
char clientId[]             = "amebaClient";

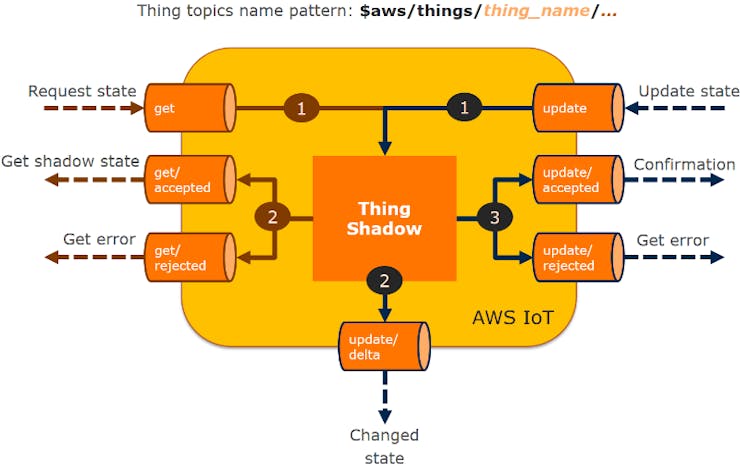

char publishUpdateTopic[]   = "$aws/things/" THING_NAME "/shadow/update";
char publishGetTopic[]      = "$aws/things/" THING_NAME "/shadow/get";
char publishPayload[MQTT_MAX_PACKET_SIZE];

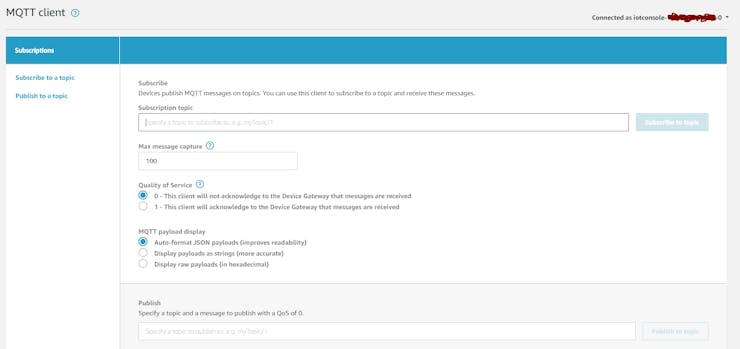

char *subscribeTopic[5] = {
  "$aws/things/" THING_NAME "/shadow/update/accepted",
  "$aws/things/" THING_NAME "/shadow/update/rejected",
  "$aws/things/" THING_NAME "/shadow/update/delta",
  "$aws/things/" THING_NAME "/shadow/get/accepted",
  "$aws/things/" THING_NAME "/shadow/get/rejected"
};

/* root CA can be download here:
 *  https://www.symantec.com/content/en/us/enterprise/verisign/roots/VeriSign-Class%203-Public-Primary-Certification-Authority-G5.pem
 **/
char* rootCABuff = \
"-----BEGIN CERTIFICATE-----\n" \
"MIIE0zCCA7ugAwIBAgIQGNrRniZ96LtKIVjNzGs7SjANBgkqhkiG9w0BAQUFADCB\n" \
"yjELMAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQL\n" \
"ExZWZXJpU2lnbiBUcnVzdCBOZXR3b3JrMTowOAYDVQQLEzEoYykgMjAwNiBWZXJp\n" \
"U2lnbiwgSW5jLiAtIEZvciBhdXRob3JpemVkIHVzZSBvbmx5MUUwQwYDVQQDEzxW\n" \
"ZXJpU2lnbiBDbGFzcyAzIFB1YmxpYyBQcmltYXJ5IENlcnRpZmljYXRpb24gQXV0\n" \
"aG9yaXR5IC0gRzUwHhcNMDYxMTA4MDAwMDAwWhcNMzYwNzE2MjM1OTU5WjCByjEL\n" \
"MAkGA1UEBhMCVVMxFzAVBgNVBAoTDlZlcmlTaWduLCBJbmMuMR8wHQYDVQQLExZW\n" \
"ZXJpU2lnbiBUcnVzdCBOZXR3b3JrMTowOAYDVQQLEzEoYykgMjAwNiBWZXJpU2ln\n" \
"biwgSW5jLiAtIEZvciBhdXRob3JpemVkIHVzZSBvbmx5MUUwQwYDVQQDEzxWZXJp\n" \
"U2lnbiBDbGFzcyAzIFB1YmxpYyBQcmltYXJ5IENlcnRpZmljYXRpb24gQXV0aG9y\n" \
"aXR5IC0gRzUwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQCvJAgIKXo1\n" \
"nmAMqudLO07cfLw8RRy7K+D+KQL5VwijZIUVJ/XxrcgxiV0i6CqqpkKzj/i5Vbex\n" \
"t0uz/o9+B1fs70PbZmIVYc9gDaTY3vjgw2IIPVQT60nKWVSFJuUrjxuf6/WhkcIz\n" \
"SdhDY2pSS9KP6HBRTdGJaXvHcPaz3BJ023tdS1bTlr8Vd6Gw9KIl8q8ckmcY5fQG\n" \
"BO+QueQA5N06tRn/Arr0PO7gi+s3i+z016zy9vA9r911kTMZHRxAy3QkGSGT2RT+\n" \
"rCpSx4/VBEnkjWNHiDxpg8v+R70rfk/Fla4OndTRQ8Bnc+MUCH7lP59zuDMKz10/\n" \
"NIeWiu5T6CUVAgMBAAGjgbIwga8wDwYDVR0TAQH/BAUwAwEB/zAOBgNVHQ8BAf8E\n" \
"BAMCAQYwbQYIKwYBBQUHAQwEYTBfoV2gWzBZMFcwVRYJaW1hZ2UvZ2lmMCEwHzAH\n" \
"BgUrDgMCGgQUj+XTGoasjY5rw8+AatRIGCx7GS4wJRYjaHR0cDovL2xvZ28udmVy\n" \
"aXNpZ24uY29tL3ZzbG9nby5naWYwHQYDVR0OBBYEFH/TZafC3ey78DAJ80M5+gKv\n" \
"MzEzMA0GCSqGSIb3DQEBBQUAA4IBAQCTJEowX2LP2BqYLz3q3JktvXf2pXkiOOzE\n" \
"p6B4Eq1iDkVwZMXnl2YtmAl+X6/WzChl8gGqCBpH3vn5fJJaCGkgDdk+bW48DW7Y\n" \
"5gaRQBi5+MHt39tBquCWIMnNZBU4gcmU7qKEKQsTb47bDN0lAtukixlE0kF6BWlK\n" \
"WE9gyn6CagsCqiUXObXbf+eEZSqVir2G3l6BFoMtEMze/aiCKm0oHw0LxOXnGiYZ\n" \
"4fQRbxC1lfznQgUy286dUV4otp6F01vvpX1FQHKOtw5rDgb7MzVIcbidJ4vEZV8N\n" \
"hnacRHr2lVz2XTIIM6RUthg/aFzyQkqFOFSDX9HoLPKsEdao7WNq\n" \
"-----END CERTIFICATE-----\n";

/* Fill your certificate.pem.crt wiht LINE ENDING */
char* certificateBuff = \
"-----BEGIN CERTIFICATE-----\n" \
"MIIDWTCCAkGgAwIBAgIUE1UsPqN2mfvCGh2DLX2HWs3NOIYwDQYJKoZIhvcNAQEL\n" \
"BQAwTTFLMEkGA1UECwxCQW1hem9uIFdlYiBTZXJ2aWNlcyBPPUFtYXpvbi5jb20g\n" \
"SW5jLiBMPVNlYXR0bGUgU1Q9V2FzaGluZ3RvbiBDPVVTMB4XDTE2MDYyNzA2MzQ0\n" \
"NVoXDTQ5MTIzMTIzNTk1OVowHjEcMBoGA1UEAwwTQVdTIElvVCBDZXJ0aWZpY2F0\n" \
"ZTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBANM8/fzFJeZoS2yIf0Yy\n" \
"seFqUlnwNwNsg0G4U+3mUPj47ogs3jLDFA208P85S3qnfDaUY553wYY3BcIlBzpp\n" \
"y7vstrgapTOxH2c/Nrk/QfDqg/gUBSZs24c12WvyqlfDnKcIsRxALbfO0yMWKATB\n" \
"fFfnnZRCOVO6eKcW2O3ptfYDH8tIhrzCAEAAAF6CYmlSzyw9KrWh7ypYCp3AcJ/Y\n" \
"Fp4+SsF6xxLRuLOk37NJL8HfuIappkUIN7seGU9Y6Bo2YgOj9yBXyW/dmV3IxKVW\n" \
"SUSMSdIP+pc/b8lFfnE14yFtfK7jKhdy4XOh9LpOMJYs0i74UVQKJs7NYL8MXHIu\n" \
"FlUCAwEAAaNgMF4wHwYDVR0jBBgwFoAUoTuxNa4LQJd07hfP4se/TevgQ0AwHQYD\n" \
"VR0OBBYEFAQ9fAKopGZ52+f+w0dJMAwTi/hVMAwGA1UdEwEB/wQCMAAwDgYDVR0P\n" \
"AQH/BAQDAgeAMA0GCSqGSIb3DQEBCwUAA4IBAQB6YQ+w6YTCZYWOlZfH09D8WhwV\n" \
"zSAzcEUdWH5T7bNK1N5r7/5zVIedseFxPUqtuC8j+C7CWDuLykpI8A2WAnayXOXn\n" \
"UPc/SNIet0nGts50cd4zzg7xMMqseGVdSMLAjFwqI8npJp9Ij8inrsf5f1hY0nhb\n" \
"Zb6FkVghlYhgmWv9p949kBQ6ODrtiyQqAYjzzZa957HwR7ajZfMIWm+HaV6f+NYq\n" \
"O43eQbt14xrRQNjAhSQaoVT64PH1TA6XiyoF25xlnrrxDXGAo5cxVDa1MmXu249X\n" \
"9z2+uzKgCYuugQk+w+8JmC6hR0EH4q4+ydsNkYTC0LK3MndHumA1Dj3OwUfA\n" \
"-----END CERTIFICATE-----\n";

/* Fill your private.pem.key wiht LINE ENDING */
char* privateKeyBuff = \
"-----BEGIN RSA PRIVATE KEY-----\n" \
"MIIEpAIBAAKCAQEA0zz9/MUl5mhLbIh/RjKx4WpSWfA3A2yDQbhT7eZQ+PjuiCze\n" \
"MsMUDbTw/zlLeqd8NpRjnnfBhjcFwiUHOmnLu+y2uBqlM7EfZz82uT9B8OqD+BQF\n" \
"JmzbhzXZa/KqV8OcpwixHEAtt87TIxYoBMF8V+edlEI5U7p4pxbY7em19gMfy0iG\n" \
"vMIAQAAAXoJiaVLPLD0qtaHvKlgKncBwn9gWnj5KwXrHEtG4s6Tfs0kvwd+4hqmm\n" \
"RQg3ux4ZT1joGjZiA6P3IFfJb92ZXcjEpVZJRIxJ0g/6lz9vyUV+cTXjIW18ruMq\n" \
"F3Lhc6H0uk4wlizSLvhRVAomzs1gvwxcci4WVQIDAQABAoIBAQCObSVjdRokzFVu\n" \
"jGokTrIZJrL36Ttul4+4lCwiz5PxCwbp0jbPSzEOPN3xeBQoUx0xP8QbaOuXLyo2\n" \
"yPiirgqsXuKkJ3MT820VFE41gS1Y3wa0EeuXCPbLp8c9PZUVL9ND3Fxui+dHc7Bw\n" \
"i9PXwQ2xx308JZq5lZUcNA93+oixohfoN4kgPfT3je7yPvn0j1rMHfjQPrSvpIvk\n" \
"P2XA66BZf8YS9k6lpJLzslntusHO4ZoqdQxaqa3a79qawUjkJ4G4qx3aDvzqdjXU\n" \
"DTFgTLI8sicWl4Icx3vqCgZfGWYuzRX5Ka5eUZYkwv4PgUOSynVvc6n3fjX/2F1X\n" \
"aPEqLuIBAoGBAO+Akr7F5LnRyLxLEeywjruGxvG5vHS41YvRcHSukrNLoK4mRMRA\n" \
"fTqJe8oZCRuOGsDBkRujgnSEUJhqt2+kGf9dvv5pCS35PFvTzawbpe8HX/JjitDb\n" \
"kKxAd3edsbOo3ZCOwYLFwMPMIMzemqFX67cXyQwOUhcGf6N7YBKhA6JhAoGBAOHK\n" \
"AarQJXo3C69SpWMvei3zmV8pUdVLPiiiNb1q/pustt+hykRhXNrngV3ncB7mJBET\n" \
"Q+36c5F04A6EBSp5Nr8EdiPnsFwk+ILKx7wQ6y0E29xIRLxryyu27rMAGpk8D1Oy\n" \
"8F2mX23qGWQAsMi2sxKk7o+2EGoUF1f/HKeDcOB1AoGBAM5johG8P2rSGYYJuxyY\n" \
"2adIcdCFGp4LWhrvFVW3yruvhHwOhlwIpuH28DIseOjCANPy+rUypoz6KOnvrLwM\n" \
"Ukr54kkjAsIXcahAUZDrEod1d31NwqZRT87gjxMJVcVY0/Zqzt9+wqr4EZv6iI5Z\n" \
"UcuqN5qoDJ3C/+NFwnjLQHKBAoGAQI5zX5VXwdPPQXeN1ggTFORba7vyq9txkEig\n" \
"uOHInlYJi3NE07xKwkQC1wh/JDaFBWTOvVIojOQv07ani3dQ0djCto1d/VqMu0ij\n" \
"RwBHXX3QJvF6xazEUGFjakaTVFC5ySKWWxBgpJqUW+VepmSmWqRRmUFi/BF2gzBr\n" \
"zvFj6qkCgYANcCc6wXqWNwmAnH/bfTRXunUgt3AAxmMXtkakhXAjElgFymgmXhTN\n" \
"Huu00WjTeZqOSl8bE0Ki/bcRojlx2QMMaEHGSVRL28uPJCJ4HeBAH3m22dtceFgF\n" \
"+ZHhF5b6NFe6EeLBcd/TGLtuKvc/jeru8tciNrPj9MTSJR9T0TYxhw==\n" \
"-----END RSA PRIVATE KEY-----\n";

int led_pin = 10;
int led_state = 1;

void updateLedState(int desired_led_state) {
  printf("change led_state to %d\r\n", desired_led_state);
  led_state = desired_led_state;
  digitalWrite(led_pin, led_state);

  sprintf(publishPayload, "{\"state\":{\"reported\":{\"led\":%d}},\"clientToken\":\"%s\"}",
    led_state,
    clientId
  );
  printf("Publish [%s] %s\r\n", publishUpdateTopic, publishPayload);
  client.publish(publishUpdateTopic, publishPayload);
}

void checkLedState() {
  printf("try to get led_state\r\n");

  sprintf(publishPayload, "{\"state\":{\"reported\":{\"led\":%d}},\"clientToken\":\"%s\"}",
    led_state,
    clientId
  );
  printf("Publish [%s] %s\r\n", publishGetTopic, publishPayload);
  client.publish(publishGetTopic, publishPayload);

  // After publish "get" command AWS IoT would send "get/accepted" message and we can check led state in callback
}

void callback(char* topic, byte* payload, unsigned int length) {
  char buf[MQTT_MAX_PACKET_SIZE];
  char *pch;
  int desired_led_state;

  strncpy(buf, (const char *)payload, length);
  buf[length] = '\0';
  printf("Message arrived [%s] %s\r\n", topic, buf);

  if ((strstr(topic, "/shadow/update/accepted") != NULL) || (strstr(topic, "/shadow/get/accepted") != NULL)) {
    // payload format: {"state":{"reported":{"led":1},"desired":{"led":0}},"metadata":{"reported":{"led":{"timestamp":1466996558}},"desired":{"led":{"timestamp":1466996558}}},"version":7,"timestamp":1466996558}
    pch = strstr(buf, "\"desired\":{\"led\":");
    if (pch != NULL) {
      pch += strlen("\"desired\":{\"led\":");
      desired_led_state = *pch - '0';
      if (desired_led_state != led_state) {
        updateLedState(desired_led_state);
      }
    }
  }
}

void reconnect() {
  // Loop until we're reconnected
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    // Attempt to connect
    if (client.connect(clientId)) {
      Serial.println("connected");

      for (int i=0; i<5; i++) {
        printf("subscribe [%s]\r\n", subscribeTopic[i]);
        client.subscribe(subscribeTopic[i]);
      }

      checkLedState();
      updateLedState(led_state);

    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      // Wait 5 seconds before retrying
      delay(5000);
    }
  }
}

void setup()
{
  pinMode(led_pin, OUTPUT);
  digitalWrite(led_pin, led_state);

  while (status != WL_CONNECTED) {
    Serial.print("Attempting to connect to SSID: ");
    Serial.println(ssid);
    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
    status = WiFi.begin(ssid, pass);
    if (status == WL_CONNECTED) break;
    // retry after 1 second
    delay(1000);
  }

  wifiClient.setRootCA((unsigned char*)rootCABuff);
  wifiClient.setClientCertificate((unsigned char*)certificateBuff, (unsigned char*)privateKeyBuff);

  client.setServer(mqttServer, 8883);
  client.setCallback(callback);

  // For publish qos1 that server will send ack
  client.setPublishQos(MQTTQOS1);

  // For subscribe or publish, wait ack can keep command sequence in order
  client.waitForAck(true);

  // Allow the hardware to sort itself out
  delay(1500);
}

void loop()
{
  if (!client.connected()) {
    reconnect();
  }
  client.loop();
}
