Integrating LoRaWAN with AWS IoT services using the RAK811

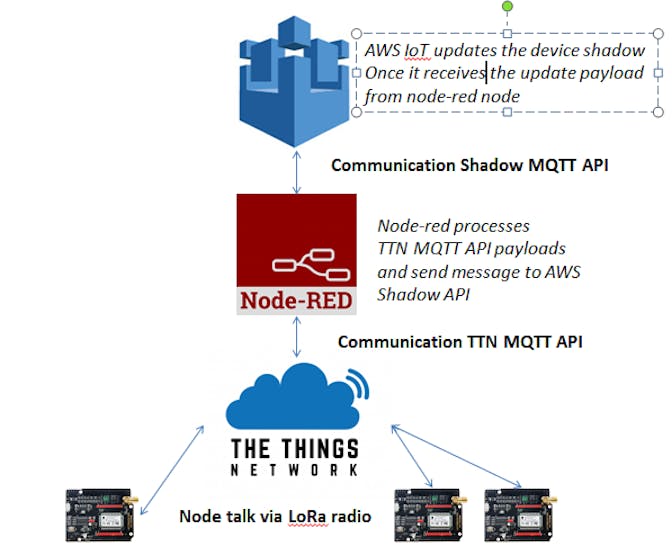

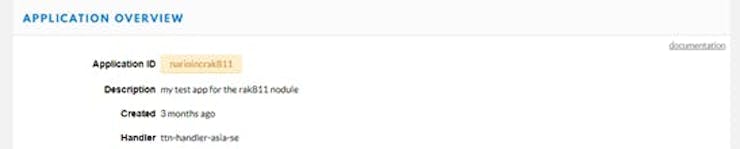

This tutorial takes you through the intricacies of setting up your RAK811 Lora node to talk to AWS ioT via the TTN LoRaWAN network

AdvancedProtip6 hours3,022
Integrating LoRaWAN with AWS IoT services using the RAK811

Things used in this project

Hardware components

RAK831
RakWireless RAK831
×1

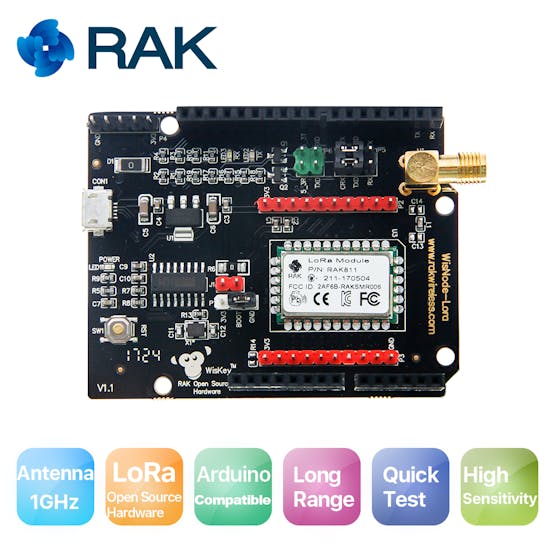

LoRa Module RAK811
RakWireless LoRa Module RAK811
×1

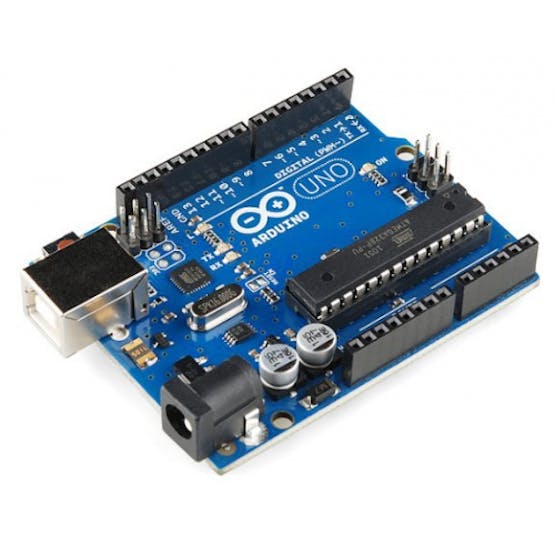

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
SparkFun FTDI Basic Breakout - 3.3V
SparkFun FTDI Basic Breakout - 3.3V
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Breadboard (generic)
Breadboard (generic)
×1
SparkFun Breadboard Power Supply 5V/3.3V
SparkFun Breadboard Power Supply 5V/3.3V
×1
Raspberry Pi 3 Model B
Raspberry Pi 3 Model B
×1

Software apps and online services

AWS IoT
Amazon Web Services AWS IoT
Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

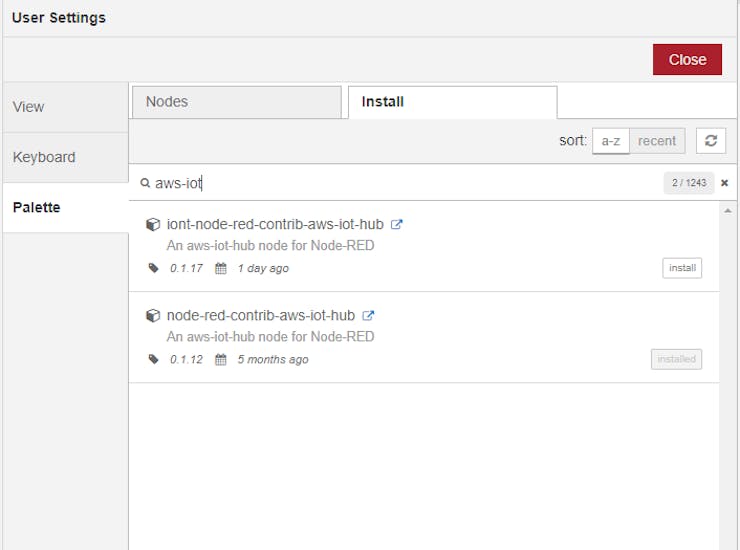

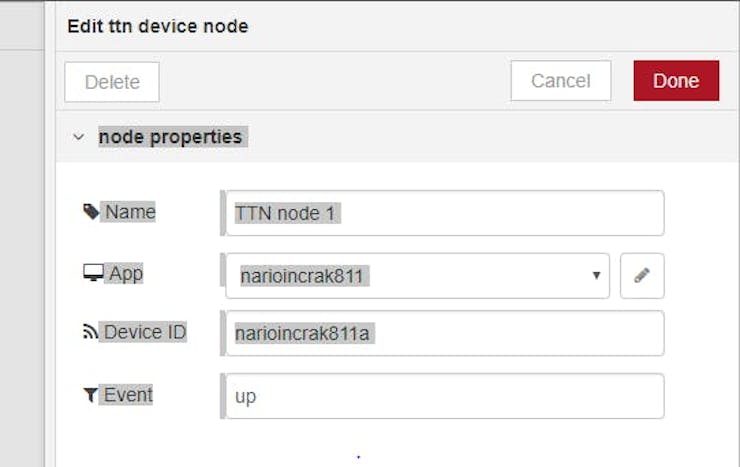

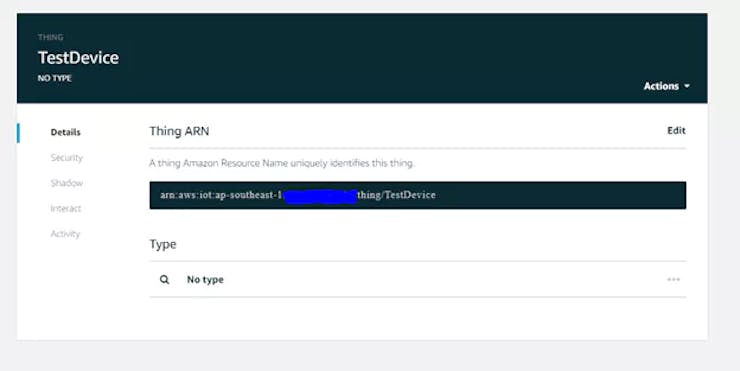

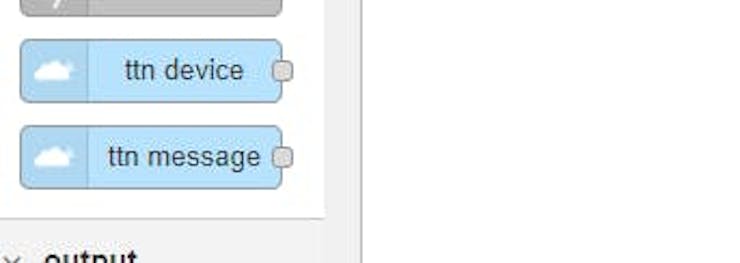

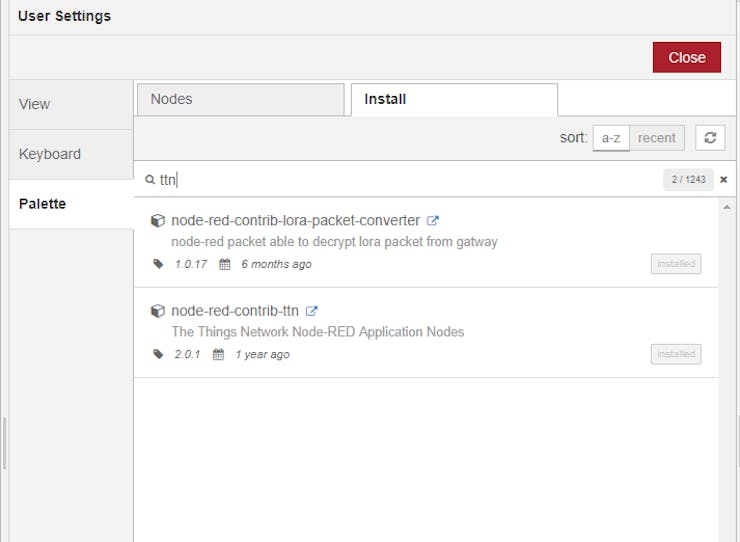

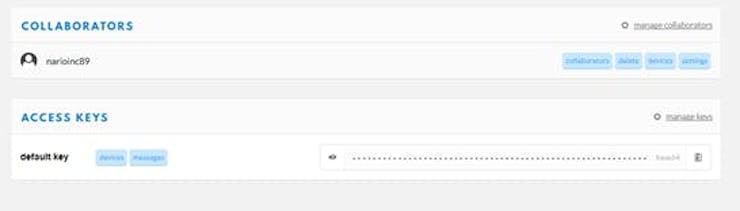

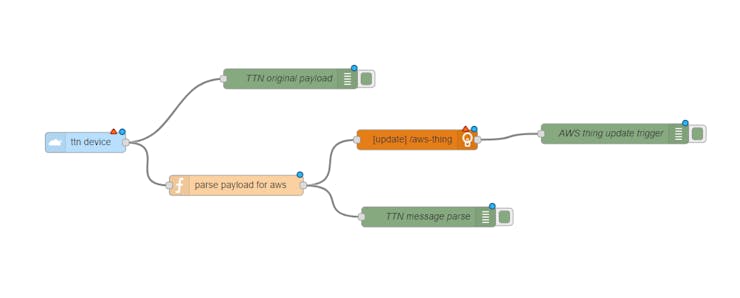

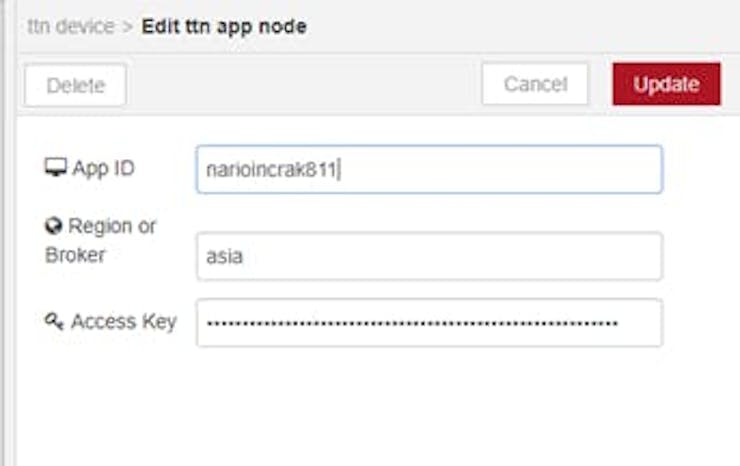

Story

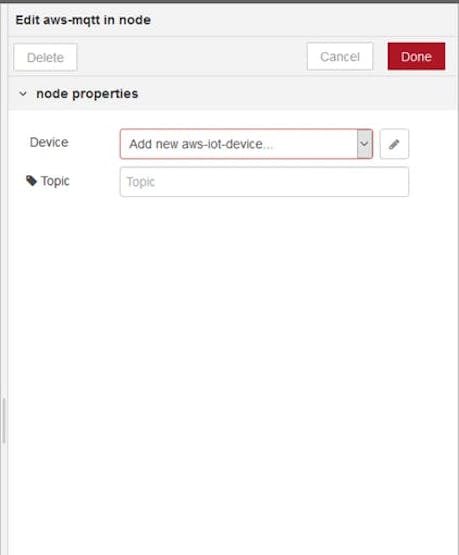

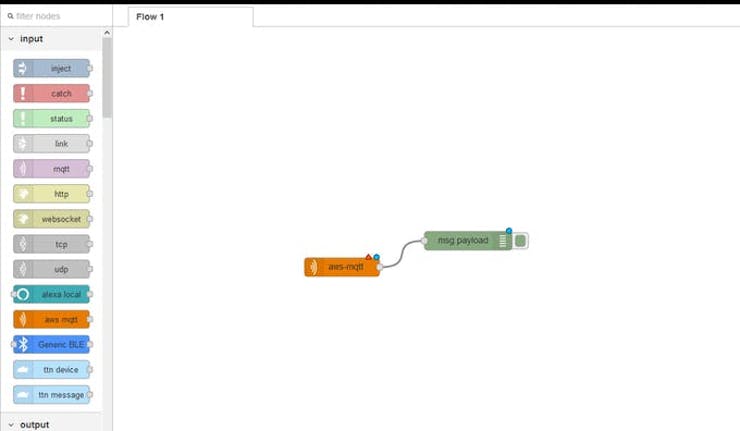

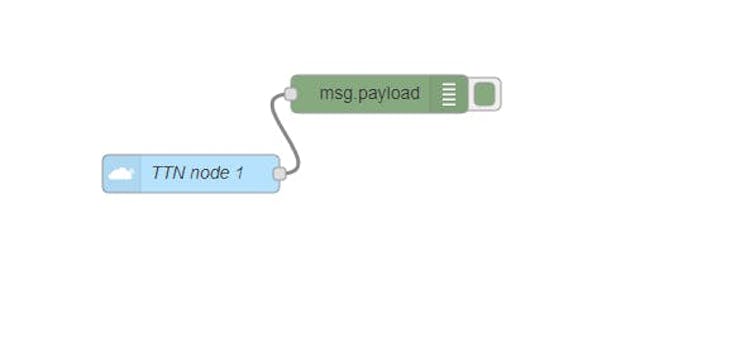

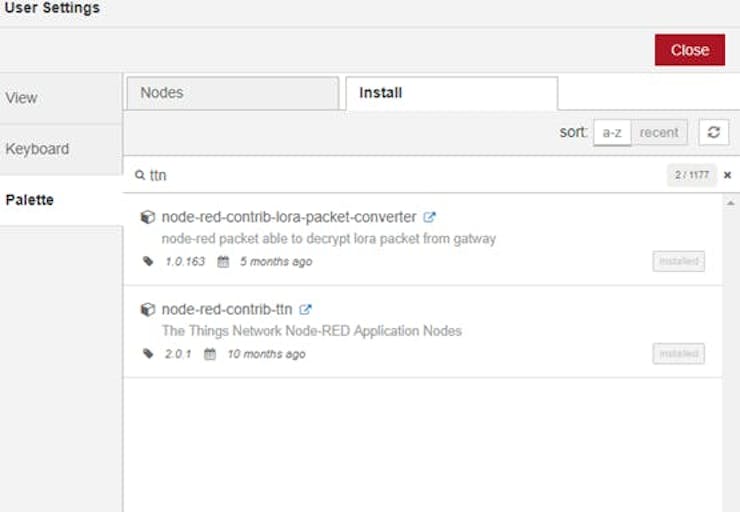

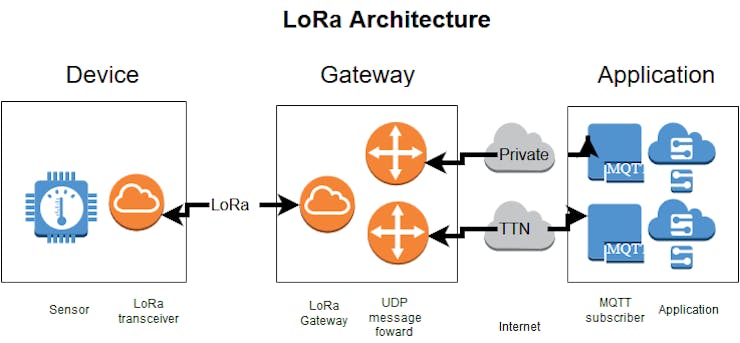

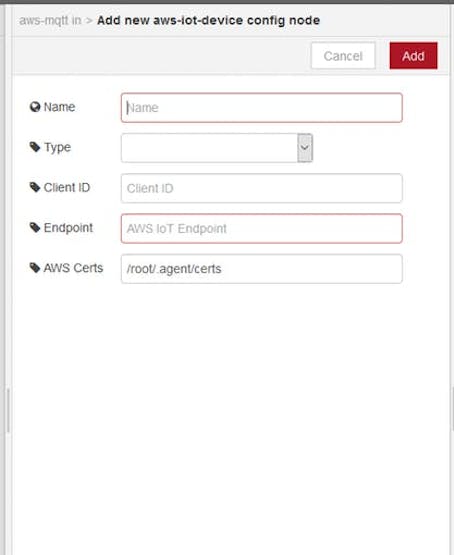

Read more

Schematics

rak 811

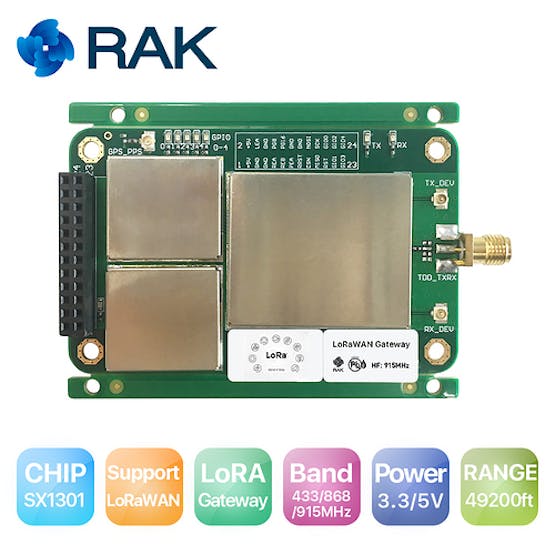

rak 831

Code

Rak 811 arduino firwmare

Arduino
void setup() {
//configure Serial1, this could also be a
//software serial.
Serial1.begin(115200);
//configure the mail RX0 and TX0 port on arduino
Serial.begin(115200);
}

//string to hold the response of a command in rak811
String response = "";

//the famous arduino loop function. runs continuosly
void loop() {
//try getting the version of the board firmware
 sendCommand("at+version\r\n");
 //set conn config
 setConnConfig("dev_eui", "your_dev_eui_here");
 setConnConfig("app_eui", "your_app_eui_here");
 setConnConfig("app_key", "your_app_key_here");
 //join the connection
 sendJoinReq();
 //send data too gateway
 sendData(1,2,"000000000000007F0000000000000000");
 delay(3000);
}

/**
* Function to send a command to the
* lora node and wait for a response
*/

void sendCommand(String atComm){
response = "";
Serial1.print(atComm);
 while(Serial1.available()){
   char ch = Serial1.read();
   response += ch;
 }
 Serial.println(response);
}




/**
* send the rak811 to sleep for time
* specified in millis paramteer
*/

void sleep(unsigned long milliseconds){
 sendCommand("at+sleep\r\n");
 delay(milliseconds);
 //send any charcater to wakeup;
 sendCommand("***\r\n");
}



/**
* reset board after the specified time delay millisenconds
* <mode> = 0 Reset and restart module
= 1 Reset LoRaWAN or LoraP2P stack and Module will reload LoRa
configuration from EEPROM
*/

void resetChip(int mode, unsigned long delaySec=0){
 delay(delaySec);
 String command = (String)"at+reset=" + mode + (String)"\r\n";
 sendCommand(command);
}


/**
* Reload the default parameters of LoraWAN or LoraP2P setting
*/

void reload(unsigned long delaySec){
 delay(delaySec);
 sendCommand("at+reload\r\n");
}


/**
* Function to set module mode
* <mode> = 0 LoraWAN Mode (default mode)
= 1 LoraP2P Mode
*/
void setMode(int mode){
 String command = (String)"at+mode=" + mode + (String)"\r\n";
 sendCommand(command);
}



/**
* Function to send data to a lora gateway;
* <type> = 0 send unconfirmed packets
= 1 send confirmed packets
<port> = 1-223 port number from 1 to 223
<data>= <hex value> hex value(no space). The Maximum length of <data> 64 bytes
*/

void sendData(int type, int port, String data){
 String command = (String)"at+send=" + type + "," + port + "," + data + (String)"\r\n";
 sendCommand(command);
}


/**
* Function to send a join request
* allowed methods "otaa" and "abp"
*/

void sendJoinReq(String method){
 String command = (String)"at+join=" + method + "\r\n";
 sendCommand(command);
}

/**
* Function to set the connection config
* < dev_addr >:<address>
<address>-------------------4 bytes hex number representing the
device address from 00000001FFFFFFFE
<dev_eui>:<eui>
<eui>-------------------------- 8-byte hexadecimal number
representing the device EUI
<app_eui>:<eui>
<eui>----------------------------8-byte hexadecimal number
representing the application EUI
<app_key>:<key>
- 11 -
<key>----------------------------16-byte hexadecimal number
representing the application key
<nwks_key>:<key>
<key>-------------------------16-byte hexadecimal number
representing the network session key
<apps_key>:<key>
<key>------------------------ 16-byte hexadecimal number representing
the application session key
<tx_power>:<dbm>
<dbm>------------------- LoRaWAN Tx Power
<adr>:<status>
<status>----------------------------- string value representing
the state, either “on” or “off”.
<dr>:<data rate>
<data rate>-----------------------decimal number representing the
data rate, from 0 and 4, but within
the limits of the data rate range for
the defined channels.
< public_net >:<status>
<status>------------------- string value representing
the state, either “on” or “off”.
< rx_delay1 >:<delay>
<delay>-------------------decimal number representing
the delay between the transmission
and the first Reception window
in milliseconds, from 0 to 65535.
*/
void setConnConfig(String key, String value){
 sendCommand("at+set_config=" + key + ":" + value + "\r\n");
}
