Carlos Martin
Published © MIT

Voice Control RGB LED

Control your rgb kitchen lighting with Alexa and Photon.

EasyFull instructions provided10,575
Voice Control RGB LED

Things used in this project

Hardware components

5mm 940nm IR Infrared Launch Emission Tube Diode LED
×1
Photon
Particle Photon
×1
RGB 300 LED Color Changing Kit with Flexible Strip
×1
Amazon Echo
Amazon Alexa Amazon Echo
×1

Software apps and online services

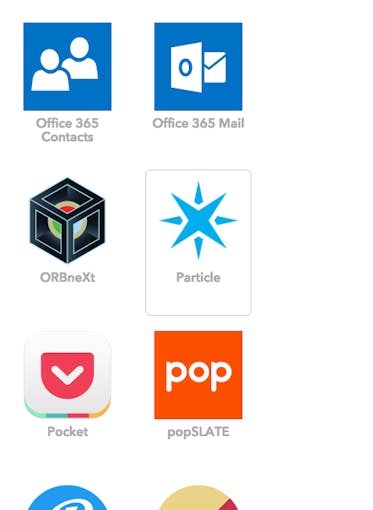

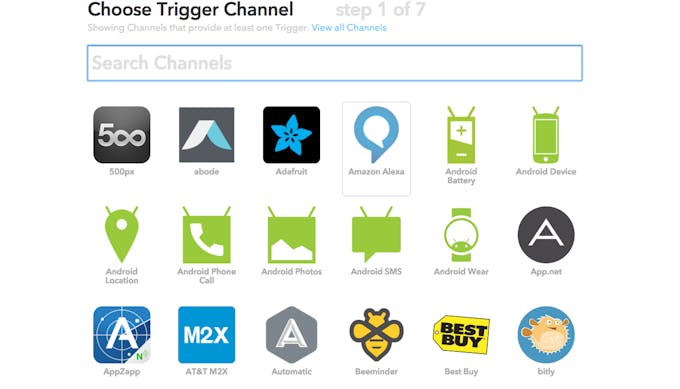

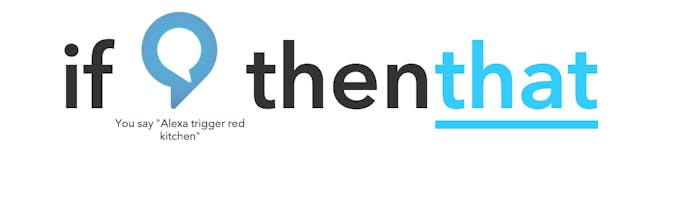

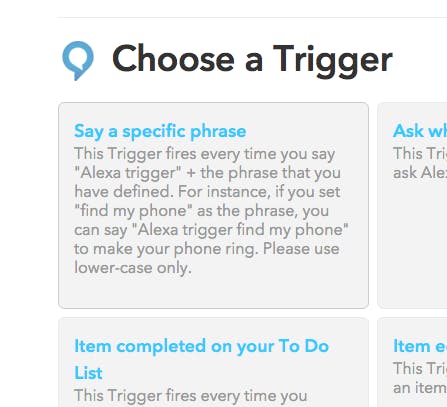

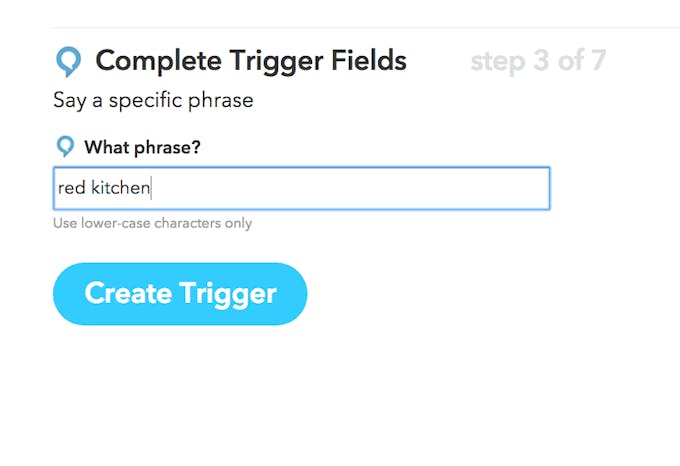

IFTTT Alexa
Amazon Web Services Alexa

Story

Read more

Schematics

VoiceRGB

Rgb

Code

Lights.ino

Arduino
// This #include statement was automatically added by the Particle IDE.
//#include "martinhouse.h"
#include "IRremote.h"

#define On_Off 0xFF02FD
#define Red 0xFF1AE5
#define Green 0xFF9A65
#define Blue 0xFFA25D
#define White 0xFF22DD
#define Brighter 0xFF3AC5
#define Less_Bright 0xFFBA45
#define Flash 0xFFD02F
#define Fade7 0xFFE01F
#define Fade3 0xFF609F
#define Jump3 0xFF20DF
#define Jump7 0xFFA05F
#define Quick 0xFFE817
#define Slow 0xFFC837


IRsend irsend(D1);

bool lightStatus;
int currentHex;
int controlRGB(String command);
int wait = 1000;
int onoff = 0xFF02FD;
int hrz = 32;

void setup() {
    lightStatus = false;

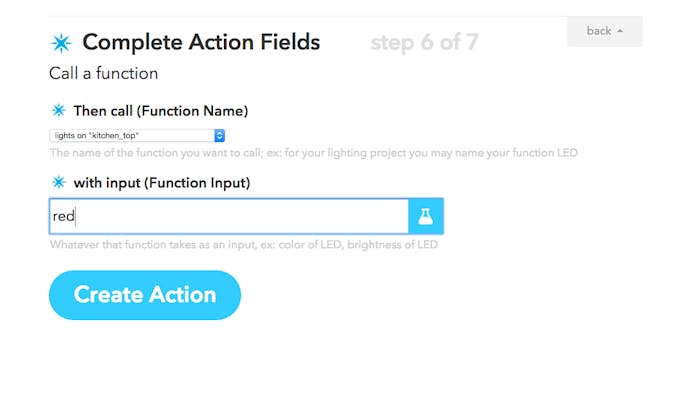

    Particle.function("lights", controlRGB);
    Particle.variable("lightStatus", lightStatus);
}

void loop() {}

void lightOnOff(){
    irsend.sendNEC(On_Off, 32);
    lightStatus = !lightStatus;
}

void setLight(int hex){
     if(!lightStatus){
            lightOnOff();
            delay(wait);
        }
        irsend.sendNEC(hex,hrz);
}

int controlRGB(String command){

    if(command == "onoff"){
        lightOnOff();
    }
    if(command == "code"){
        setLight(currentHex);
    }
    if(command == "red"){
       setLight(Red);
    }
    if(command == "green"){
        setLight(Green);
    }
     if(command == "blue"){
         setLight(Blue);
    }
     if(command == "white"){
         setLight(White);
    }
     if(command == "brighter"){
         setLight(Brighter);
    }
     if(command == "lessBright"){
         setLight(Less_Bright);
    }
     if(command == "flash"){
         setLight(Flash);
    }
     if(command == "fade7"){
         setLight(Fade7);
    }
     if(command == "fade3"){
         setLight(Fade3);
    }
     if(command == "jump3"){
         setLight(Jump3);
    }
     if(command == "jump7"){
         setLight(Jump7);
    }
     if(command == "quick"){
         setLight(Quick);
    }
     if(command == "slow"){
         setLight(Slow);
    }
    if(command == "off"){
        if(lightStatus){
           lightOnOff();
        }
    }
    if(command == "isoff"){
        lightStatus = false;
    }
}

IRremote.cpp

C/C++
/*
 * IRremote
 * Version 0.11 August, 2009
 * Copyright 2009 Ken Shirriff
 * For details, see http://arcfn.com/2009/08/multi-protocol-infrared-remote-library.html
 *
 * Modified by Paul Stoffregen <paul@pjrc.com> to support other boards and timers
 * Modified  by Mitra Ardron <mitra@mitra.biz>
 * Added Sanyo and Mitsubishi controllers
 * Modified Sony to spot the repeat codes that some Sony's send
 * Modified by Gaspard van Koningsveld to trim out IRrecv, not using PWM anymore, allow setting of IR LED pin, and make it compatible with the Spark Core v1.0 (STM32F103CB based)
 *
 * Interrupt code based on NECIRrcv by Joe Knapp
 * http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1210243556
 * Also influenced by http://zovirl.com/2008/11/12/building-a-universal-remote-with-an-arduino/
 *
 * JVC and Panasonic protocol added by Kristian Lauszus (Thanks to zenwheel and other people at the original blog post)
 */

#include "IRremote.h"
#include "application.h"

IRsend::IRsend(int irPin) : irPin(irPin) {};

void IRsend::sendNEC(unsigned long data, int nbits)
{
  enableIROut(38);
  mark(NEC_HDR_MARK);
  space(NEC_HDR_SPACE);
  for (int i = 0; i < nbits; i++) {
    if (data & TOPBIT) {
      mark(NEC_BIT_MARK);
      space(NEC_ONE_SPACE);
    }
    else {
      mark(NEC_BIT_MARK);
      space(NEC_ZERO_SPACE);
    }
    data <<= 1;
  }
  mark(NEC_BIT_MARK);
  space(0);
}

void IRsend::sendSony(unsigned long data, int nbits) {
  enableIROut(40);
  mark(SONY_HDR_MARK);
  space(SONY_HDR_SPACE);
  data = data << (32 - nbits);
  for (int i = 0; i < nbits; i++) {
    if (data & TOPBIT) {
      mark(SONY_ONE_MARK);
      space(SONY_HDR_SPACE);
    }
    else {
      mark(SONY_ZERO_MARK);
      space(SONY_HDR_SPACE);
    }
    data <<= 1;
  }
}

void IRsend::sendRaw(unsigned int buf[], int len, int hz)
{
  enableIROut(hz);
  for (int i = 0; i < len; i++) {
    if (i & 1) {
      space(buf[i]);
    }
    else {
      mark(buf[i]);
    }
  }
  space(0); // Just to be sure
}

// Note: first bit must be a one (start bit)
void IRsend::sendRC5(unsigned long data, int nbits)
{
  enableIROut(36);
  data = data << (32 - nbits);
  mark(RC5_T1); // First start bit
  space(RC5_T1); // Second start bit
  mark(RC5_T1); // Second start bit
  for (int i = 0; i < nbits; i++) {
    if (data & TOPBIT) {
      space(RC5_T1); // 1 is space, then mark
      mark(RC5_T1);
    }
    else {
      mark(RC5_T1);
      space(RC5_T1);
    }
    data <<= 1;
  }
  space(0); // Turn off at end
}

// Caller needs to take care of flipping the toggle bit
void IRsend::sendRC6(unsigned long data, int nbits)
{
  enableIROut(36);
  data = data << (32 - nbits);
  mark(RC6_HDR_MARK);
  space(RC6_HDR_SPACE);
  mark(RC6_T1); // start bit
  space(RC6_T1);
  int t;
  for (int i = 0; i < nbits; i++) {
    if (i == 3) {
      // double-wide trailer bit
      t = 2 * RC6_T1;
    }
    else {
      t = RC6_T1;
    }
    if (data & TOPBIT) {
      mark(t);
      space(t);
    }
    else {
      space(t);
      mark(t);
    }

    data <<= 1;
  }
  space(0); // Turn off at end
}

/* Sharp and DISH support by Todd Treece ( http://unionbridge.org/design/ircommand )

The Dish send function needs to be repeated 4 times, and the Sharp function
has the necessary repeat built in because of the need to invert the signal.

Sharp protocol documentation:
http://www.sbprojects.com/knowledge/ir/sharp.htm

Here are the LIRC files that I found that seem to match the remote codes
from the oscilloscope:

Sharp LCD TV:
http://lirc.sourceforge.net/remotes/sharp/GA538WJSA

DISH NETWORK (echostar 301):
http://lirc.sourceforge.net/remotes/echostar/301_501_3100_5100_58xx_59xx

For the DISH codes, only send the last for characters of the hex.
i.e. use 0x1C10 instead of 0x0000000000001C10 which is listed in the
linked LIRC file.
*/
void IRsend::sendSharp(unsigned long data, int nbits) {
  unsigned long invertdata = data ^ SHARP_TOGGLE_MASK;
  enableIROut(38);
  for (int i = 0; i < nbits; i++) {
    if (data & 0x4000) {
      mark(SHARP_BIT_MARK);
      space(SHARP_ONE_SPACE);
    }
    else {
      mark(SHARP_BIT_MARK);
      space(SHARP_ZERO_SPACE);
    }
    data <<= 1;
  }

  mark(SHARP_BIT_MARK);
  space(SHARP_ZERO_SPACE);
  delay(46);
  for (int i = 0; i < nbits; i++) {
    if (invertdata & 0x4000) {
      mark(SHARP_BIT_MARK);
      space(SHARP_ONE_SPACE);
    }
    else {
      mark(SHARP_BIT_MARK);
      space(SHARP_ZERO_SPACE);
    }
    invertdata <<= 1;
  }
  mark(SHARP_BIT_MARK);
  space(SHARP_ZERO_SPACE);
  delay(46);
}

void IRsend::sendDISH(unsigned long data, int nbits)
{
  enableIROut(56);
  mark(DISH_HDR_MARK);
  space(DISH_HDR_SPACE);
  for (int i = 0; i < nbits; i++) {
    if (data & DISH_TOP_BIT) {
      mark(DISH_BIT_MARK);
      space(DISH_ONE_SPACE);
    }
    else {
      mark(DISH_BIT_MARK);
      space(DISH_ZERO_SPACE);
    }
    data <<= 1;
  }
}

void IRsend::sendPanasonic(unsigned int address, unsigned long data) {
    enableIROut(35);
    mark(PANASONIC_HDR_MARK);
    space(PANASONIC_HDR_SPACE);

    for(int i=0;i<16;i++)
    {
        mark(PANASONIC_BIT_MARK);
        if (address & 0x8000) {
            space(PANASONIC_ONE_SPACE);
        } else {
            space(PANASONIC_ZERO_SPACE);
        }
        address <<= 1;
    }
    for (int i=0; i < 32; i++) {
        mark(PANASONIC_BIT_MARK);
        if (data & TOPBIT) {
            space(PANASONIC_ONE_SPACE);
        } else {
            space(PANASONIC_ZERO_SPACE);
        }
        data <<= 1;
    }
    mark(PANASONIC_BIT_MARK);
    space(0);
}

void IRsend::sendJVC(unsigned long data, int nbits, int repeat)
{
    enableIROut(38);
    data = data << (32 - nbits);
    if (!repeat){
        mark(JVC_HDR_MARK);
        space(JVC_HDR_SPACE);
    }
    for (int i = 0; i < nbits; i++) {
        if (data & TOPBIT) {
            mark(JVC_BIT_MARK);
            space(JVC_ONE_SPACE);
        }
        else {
            mark(JVC_BIT_MARK);
            space(JVC_ZERO_SPACE);
        }
        data <<= 1;
    }
    mark(JVC_BIT_MARK);
    space(0);
}

void IRsend::mark(int time) {
  // Sends an IR mark (frequency burst output) for the specified number of microseconds.
  noInterrupts();

  while (time > 0) {
    digitalWrite(irPin, HIGH); // this takes about 3 microseconds to happen
    delayMicroseconds(burstWait);
    digitalWrite(irPin, LOW); // this also takes about 3 microseconds
    delayMicroseconds(burstWait);

    time -= burstLength;
  }

  interrupts();
}

void IRsend::space(int time) {
  // Sends an IR space (no output) for the specified number of microseconds.
  digitalWrite(irPin, LOW); // Takes about 3 microsecondes
  if (time > 3) {
    delayMicroseconds(time - 3);
  }
}

void IRsend::enableIROut(int khz) {
  // Enables IR output.  The khz value controls the modulation frequency in kilohertz.
  // MAX frequency is 166khz.
  pinMode(irPin, OUTPUT);
  digitalWrite(irPin, LOW);

  // This is the time to wait with the IR LED on and off to make the frequency, in microseconds.
  // The - 3.0 at the end is because digitalWrite() takes about 3 microseconds. Info from:
  // https://github.com/eflynch/sparkcoreiremitter/blob/master/ir_emitter/ir_emitter.ino
  burstWait = round(1.0 / khz * 1000.0 / 2.0 - 3.0);
  // This is the total time of a period, in microseconds.
  burstLength = round(1.0 / khz * 1000.0);
}

IRremote.h

C/C++
/*
 * IRremote
 * Version 0.1 July, 2009
 * Copyright 2009 Ken Shirriff
 * For details, see http://arcfn.com/2009/08/multi-protocol-infrared-remote-library.htm http://arcfn.com
 * Edited by Mitra to add new controller SANYO
 *
 * Interrupt code based on NECIRrcv by Joe Knapp
 * http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1210243556
 * Also influenced by http://zovirl.com/2008/11/12/building-a-universal-remote-with-an-arduino/
 *
 * JVC and Panasonic protocol added by Kristian Lauszus (Thanks to zenwheel and other people at the original blog post)
 */

#ifndef IRremote_h
#define IRremote_h

class IRsend
{
  const int irPin;
  int burstWait;
  int burstLength;

public:
  IRsend(int irPin);
  void sendNEC(unsigned long data, int nbits);
  void sendSony(unsigned long data, int nbits);
  // Neither Sanyo nor Mitsubishi send is implemented yet
  //  void sendSanyo(unsigned long data, int nbits);
  //  void sendMitsubishi(unsigned long data, int nbits);
  void sendRaw(unsigned int buf[], int len, int hz);
  void sendRC5(unsigned long data, int nbits);
  void sendRC6(unsigned long data, int nbits);
  void sendSharp(unsigned long data, int nbits);
  void sendDISH(unsigned long data, int nbits);
  void sendPanasonic(unsigned int address, unsigned long data);
  void sendJVC(unsigned long data, int nbits, int repeat); // *Note instead of sending the REPEAT constant if you want the JVC repeat signal sent, send the original code value and change the repeat argument from 0 to 1. JVC protocol repeats by skipping the header NOT by sending a separate code value like NEC does.
private:
  void enableIROut(int khz);
  void mark(int usec);
  void space(int usec);
}
;

// Constants for sending IR codes
#define NEC_HDR_MARK  9000
#define NEC_HDR_SPACE 4500
#define NEC_BIT_MARK  560
#define NEC_ONE_SPACE 1600
#define NEC_ZERO_SPACE  560
#define NEC_RPT_SPACE 2250

#define SONY_HDR_MARK 2400
#define SONY_HDR_SPACE  600
#define SONY_ONE_MARK 1200
#define SONY_ZERO_MARK  600
#define SONY_RPT_LENGTH 45000
#define SONY_DOUBLE_SPACE_USECS  500  // usually ssee 713 - not using ticks as get number wrapround

// SA 8650B
#define SANYO_HDR_MARK  3500  // seen range 3500
#define SANYO_HDR_SPACE 950 //  seen 950
#define SANYO_ONE_MARK  2400 // seen 2400
#define SANYO_ZERO_MARK 700 //  seen 700
#define SANYO_DOUBLE_SPACE_USECS  800  // usually ssee 713 - not using ticks as get number wrapround
#define SANYO_RPT_LENGTH 45000

// Mitsubishi RM 75501
// 14200 7 41 7 42 7 42 7 17 7 17 7 18 7 41 7 18 7 17 7 17 7 18 7 41 8 17 7 17 7 18 7 17 7

// #define MITSUBISHI_HDR_MARK  250  // seen range 3500
#define MITSUBISHI_HDR_SPACE  350 //  7*50+100
#define MITSUBISHI_ONE_MARK 1950 // 41*50-100
#define MITSUBISHI_ZERO_MARK  750 // 17*50-100
// #define MITSUBISHI_DOUBLE_SPACE_USECS  800  // usually ssee 713 - not using ticks as get number wrapround
// #define MITSUBISHI_RPT_LENGTH 45000


#define RC5_T1    889
#define RC5_RPT_LENGTH  46000

#define RC6_HDR_MARK  2666
#define RC6_HDR_SPACE 889
#define RC6_T1    444
#define RC6_RPT_LENGTH  46000

#define SHARP_BIT_MARK 245
#define SHARP_ONE_SPACE 1805
#define SHARP_ZERO_SPACE 795
#define SHARP_GAP 600000
#define SHARP_TOGGLE_MASK 0x3FF
#define SHARP_RPT_SPACE 3000

#define DISH_HDR_MARK 400
#define DISH_HDR_SPACE 6100
#define DISH_BIT_MARK 400
#define DISH_ONE_SPACE 1700
#define DISH_ZERO_SPACE 2800
#define DISH_RPT_SPACE 6200
#define DISH_TOP_BIT 0x8000

#define PANASONIC_HDR_MARK 3502
#define PANASONIC_HDR_SPACE 1750
#define PANASONIC_BIT_MARK 502
#define PANASONIC_ONE_SPACE 1244
#define PANASONIC_ZERO_SPACE 400

#define JVC_HDR_MARK 8000
#define JVC_HDR_SPACE 4000
#define JVC_BIT_MARK 600
#define JVC_ONE_SPACE 1600
#define JVC_ZERO_SPACE 550
#define JVC_RPT_LENGTH 60000

#define SHARP_BITS 15
#define DISH_BITS 16

#define TOPBIT 0x80000000

#endif

Credits

Carlos Martin

Carlos Martin

2 projects • 9 followers
Contact

Comments

Add projectSign up / Login
